Duct Connector Flange, Wall Mount, Stainless Steel
4.6 3 notes$36.99Low on the shelf
- 201 stainless steel
- 141mm (5.55 inch) interface outer diameter
- Wall mountable
- 1 piece per package
Pick the size or colour
The stamp below follows whichever option is lit.
The stamp hands you over to the listing where this bin is actually sold. The price and the stock state you see there are the ones that count.
What this bin holds
Our duct connector flanges create a secure connection for your ventilation systems. They ensure smooth airflow in any ducted setup.

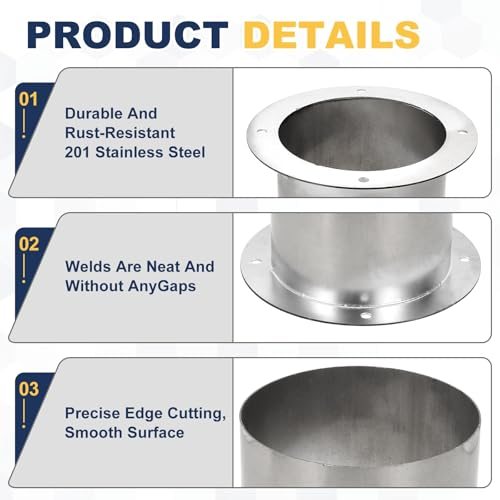

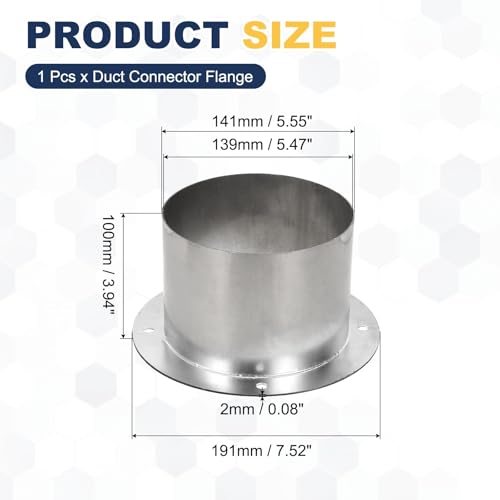

This duct connector flange has an interface outer diameter of 141mm (5.55 inches) and an inner diameter of 139mm (5.47 inches). The flange outer diameter is 191mm (7.52 inches), with an overall length of 100mm (3.94 inches). It is made from 201 stainless steel, offering good rust and temperature resistance, and it includes 8mm (0.31 inch) mounting holes.
The numbers on the label
| Aisle | Plumbing, pneumatics & electrical |
|---|---|
| Options in this bin | 2 sizes and colours |
| Overall length | 100mm / 3.94 inch |
| Thickness | 2mm / 0.08 inch |
| Color | Silver |
| Packing list | 1 x Duct Connector Flange |
| Price across options | $36.99 to $58.99 |
| Shelf group | Tools & Home Improvement |
| Rating on the listing | 4.6 from 3 notes |
Who takes it home

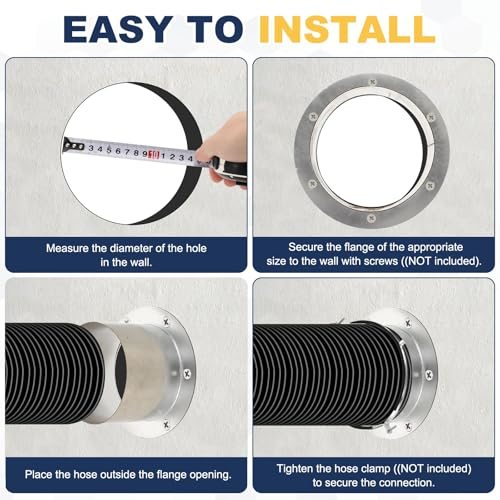

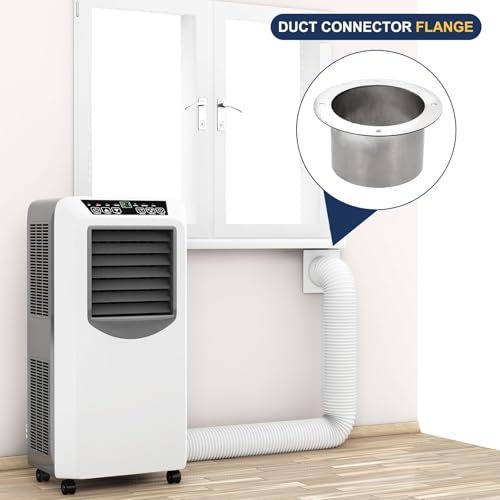

These flanges are useful for connecting tumble dryers, bathroom or kitchen exhaust fans, and inline duct fans to a ventilation system. The connector base includes screw mounting holes, so you can fix it directly to a wall without extra drilling. Remember to confirm the interface outer diameter before ordering.
Next to it on the shelf
Plumbing, pneumatics & electrical is where we keep it, with 435 neighbours: fittings, hose, terminals, filters.
Duct Connector Flange, Wall Mount, Stainless Steel $36.99
What makers wrote about this bin
Good quality
Brent C Potts · 4 of 5 Nicely welded, thick steel, heavy duty.
anonomous · 5 of 5
