6mm x 1/8"NPT Male Thread Push — PATIKIL

Plumbing, pneumatics & electrical

6mm x 1/8"NPT Male Thread Push

4.6 27 notes

$5.93Low on the shelf

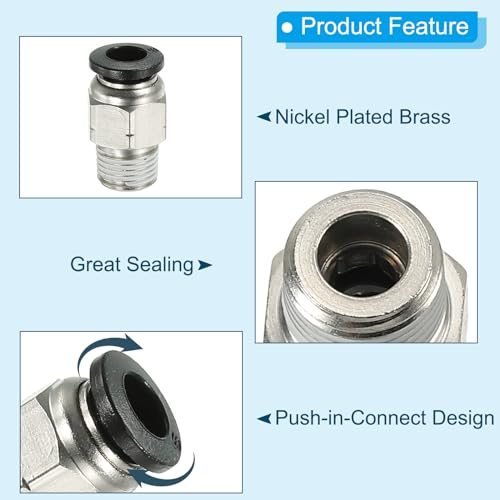

  • Connects 6mm OD tubes to 1/8" NPT threads
  • Nickel plated brass material
  • Threads have sealant applied
  • Joint body rotates 360 degrees

Pick the size or colour

The stamp below follows whichever option is lit.

The stamp hands you over to the listing where this bin is actually sold. The price and the stock state you see there are the ones that count.

What this bin holds

Our push-to-connect fittings join pneumatic system tubes to NPT male threads. They make connections in air ride systems, air horns and compressors.

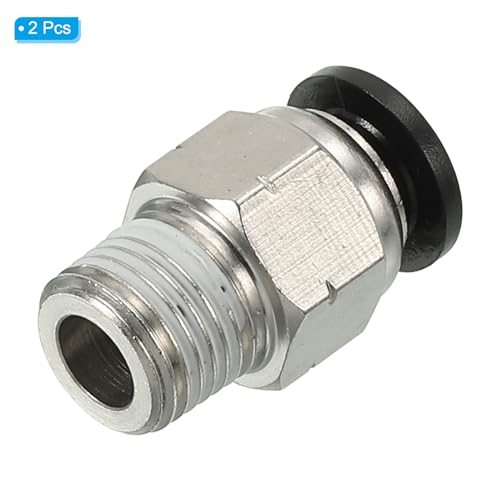

You will receive two silver, nickel-plated brass fittings, each measuring 22 x 12mm. The 1/8" NPT threads are coated with sealant for a good seal, saving you time. Once installed, the body rotates 360 degrees to change the direction of the air line.

The numbers on the label

What the label says
AislePlumbing, pneumatics & electrical

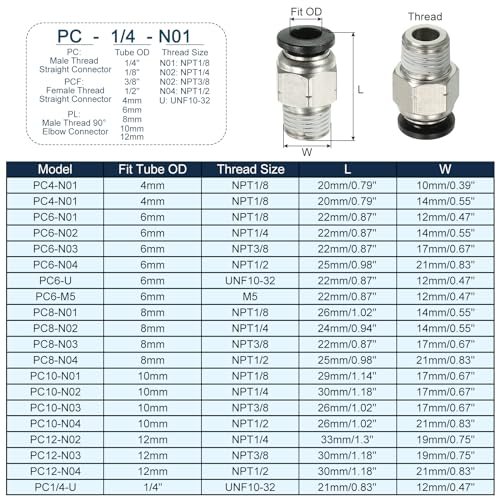

Options in this bin40 sizes and colours
ColorSilver
MaterialNickel Plated Brass
Thread size1/8" NPT
Overall size22 x 12mm/ 0.87 x 0.47 inch(L x W)
Packing list2 x Air Line Push to Connect Fitting
Price across options$5.93 to $17.69
Rating on the listing4.6 from 27 notes

Who takes it home

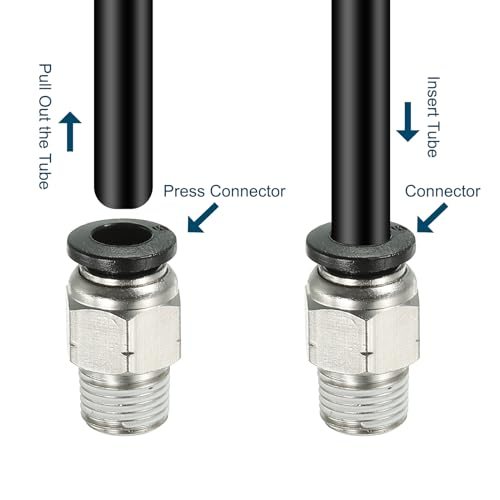

These fittings are for anyone setting up pneumatic systems at the bench or in the shop. They fit PU, PA, PE, and PV tubes with a 6mm outside diameter. When you install them, push the tube firmly into the fitting for a good seal.

Next to it on the shelf

Fittings, hose, terminals, filters. Plumbing, pneumatics & electrical holds 436 bins, sorted by price and by what is on the shelf today.

6mm x 1/8"NPT Male Thread Push $5.93

What makers wrote about this bin

  • All I wanted is no leaking. I bought these fitting to replace nearly identical brass fittings I had which kept leaking. These fittings do not leak! What more can you ask for?

    Ten Bitcomb · 5 of 5
